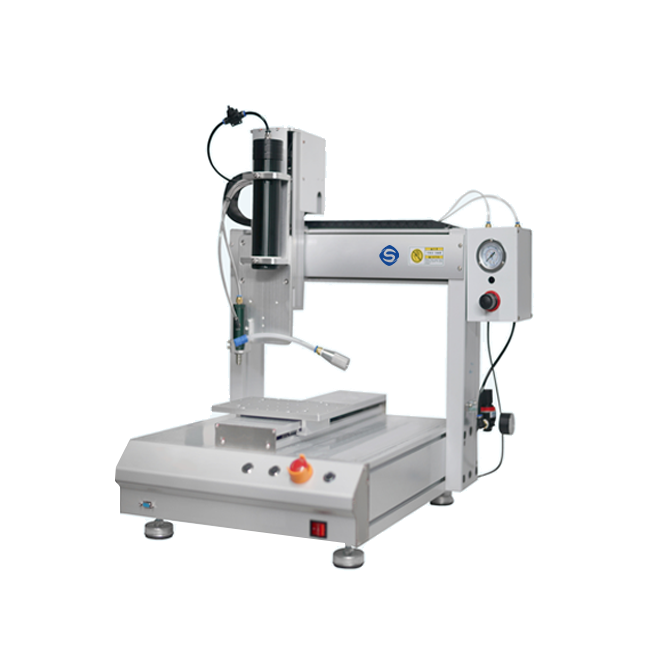

Desktop single station silicone automatic dispensing machine SPL-D331-2
Description
Parameter configuration
| Product Model | SPL-D331-2 |
| work schedule | 300/300/100mm (customizable) |
| Programming method | Handheld teaching programming |
| movement speed | 300-800mm/S (customizable) |
| repeatability accuracy | ±0.02mm |
| Glue valve return | Suction valve (can be matched with dispensing valve according to needs) |
| Machine load | X-axis: 10kg Y-axis: 10kg Z-axis: 3-5kg |
| Program storage | Can store 100 sets of processing data |
| Transmission method | Synchronous belt/screw+precision linear guide |
| display mode | LED teaching box |
| input power | Full voltage AC220V |
Main Features:
- Adopting high-precision dispensing control technology
- Specially designed for silicone and other adhesives with poor fluidity and high viscosity
- Capable of achieving precise dispensing at any position within the space
- Can accurately control the amount of glue produced through the suction valve
- Stable dispensing volume, no leakage or dripping of glue, ensuring consistency and reliability of dispensing
