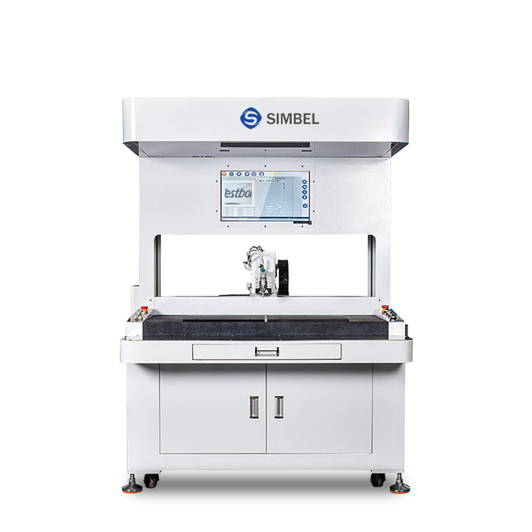

Panoramic Vision Precision Automatic Dispenser
Description
Vision Inline Precision Dispenser is a production‑line‑oriented inline dispensing solution. Different from standalone batch‑type dispensers, it can be directly embedded into existing assembly lines for continuous non‑stop workpiece processing. Equipped with high‑resolution CCD vision system, it completes visual positioning before dispensing, automatically compensates workpiece position deviation. After dispensing, inline vision inspection verifies glue path, glue width and glue quality, identifying missing glue, overflow, glue offset and broken glue in real time. Support screw valve / jet valve for different viscosity adhesives, including sealant, thermal conductive adhesive, structural adhesive. It reserves signal interaction interface to realize hand‑shake communication with upstream and downstream equipment. Production data including dispensing parameters and inspection results can be logged for full‑process traceability. Suitable for high‑volume mass‑production scenarios, greatly improving throughput while guaranteeing consistent dispensing quality.
Main features
- Full‑field panoramic CCD vision system, fixture‑free dispensing, products placed randomly
- Automatic recognition of workpiece position, rotation angle, real‑time offset correction
- Compatible with screw valve / jet valve, adapt to multi‑viscosity adhesives
- Supports sealant, thermal conductive adhesive, UV glue, silver paste, epoxy and so on
- High‑speed image processing, fast positioning response
- PLC centralized control, multiple groups of dispensing process recipes saved
- Optional post‑dispensing inline inspection for missing glue, overflow and broken glue
- Production data logging for full‑process traceability
- Suitable for multi‑variety, flexible production
Main parameters
| Product name | Panoramic Vision Precision Automatic Dispenser |
| X/Y/Z Dispensing Stroke | 800/300/100 mm |
| X/Y/Z Max Moving Speed | 800 mm/s |
| X/Y/Z Acceleration | 0.5 g |
| X/Y/Z Repeat Positioning Accuracy | ±0.015 mm |
| Y/Z Axis Load Capacity | 10 kg / 5 kg |
| Dispensing Height | Z: 100 mm |
| Field of View | 800 × 300 mm |
| Air Pressure | 0.5–0.7 MPa |
Applicable industry
- Consumer 3C electronics assembly
- New‑energy components dispensing
- Automotive electronic parts processing
- PCBA & circuit board protection dispensing
- Sensor, semiconductor and Mini‑LED packaging
- Irregular‑shape parts flexible dispensing
Glues for Dispenser Applications
Dispensers are mainly used for various silicones, solvents, adhesives, glues, paints, chemical materials, liquid adhesives, etc.
Any dispensing path
Various complex dispensing patterns and dispensing paths, intelligently and automatically correcting the optimal path
