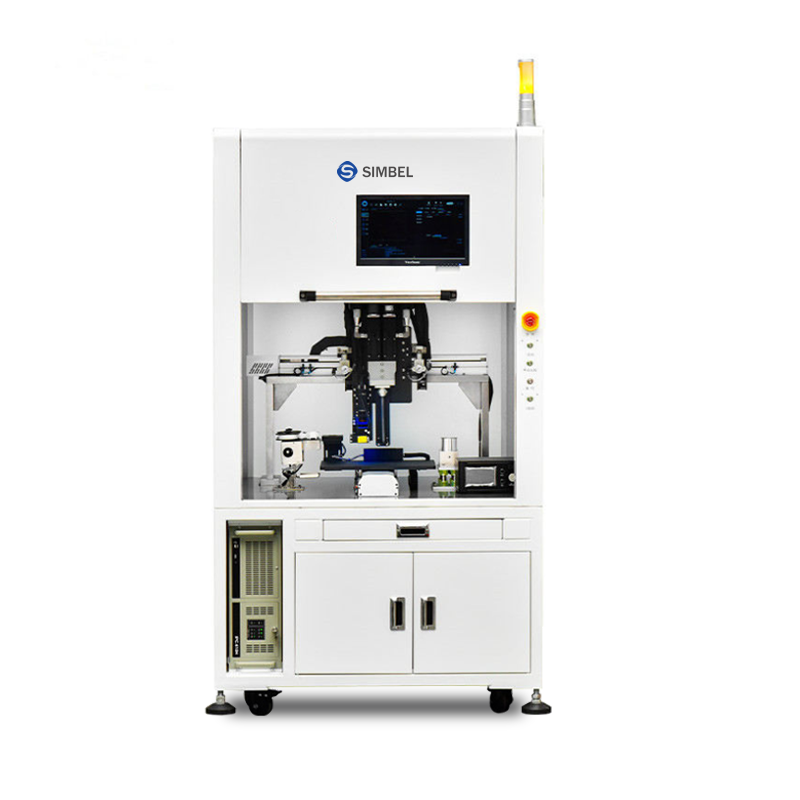

Thermal conductive adhesive two-component dispensing machine

The two-component visual automatic dispenser for thermal conductive adhesive is specially developed for thermal conductive adhesive and thermal conductive gel. It is equipped with CCD visual positioning and precision screw valve, and is suitable for grinding thermal conductive media containing fillers. Supports both quantitative and linkage control modes, with mixed tube anti curing timed dispensing function, can be connected to assembly lines, widely used in thermal conductivity bonding filling processes for new energy power modules, energy storage, automotive electronics, PCBA, and can be optionally equipped with online adhesive path detection to achieve production data recording and traceability.

Main features

CCD vision positioning, auto‑compensate workpiece and fixture deviation
Precision screw valve, stable output for filled thermal conductive adhesive & thermal gel
Dual control modes: quantitative mode and linkage mode
Adjustable glue ratio and quantitative calibration for easy setup
Reserved signal input port for assembly‑line integration
Anti‑curing standby function with timed glue‑spitting to prevent mixing tube blockage
Touch‑screen pop‑up alarm for motor malfunction
PLC control, multiple groups of process parameters saving
Production data recording for full‑process traceability
Optional inline visual inspection for missing glue, overflow and offset detection

Main parameters

Product name	Thermal conductive adhesive two-component dispensing machine
X/Y/Z(mm)	500mm/300mm/300mm/100mm
Size	98012801850
Maximum Load	15KG
Repeat accuracy	±0.02mm
Display	LED Display
Temperature adjustment range	0-500 degree centigrade

Applicable industry

Thermal bonding for new‑energy power modules and power devices
Thermal interface dispensing for energy‑storage battery modules & components
Thermal adhesive dispensing for PCBA and main‑board components
Thermal gel application for power supplies and adapters
Thermal assembly for automotive electronics and electronic control units
Thermal filling for industrial control modules and frequency converters
Thermal bonding for communication and base‑station components
Mass dispensing process for two‑component thermal conductive adhesive and thermal gel

Glues for Dispenser Applications

Dispensers are mainly used for various silicones, solvents, adhesives, glues, paints, chemical materials, liquid adhesives, etc.

Any dispensing path

Various complex dispensing patterns and dispensing paths, intelligently and automatically correcting the optimal path

Why choose simbel

Certificates

We focus on delivering quality products with reliable assurance. This machine has already got 3C ,CE,UL,FCC certificates.If custom design required ,a new certification may take 1-2 weeks to obtain .

How to Purchase Our Equipment

Contact with Simble now to custom your own machine.

Step1 Clarify requirements
You can contact our customer agent Irene.li@simbelintel.com to clarify the requirements .or you can talk to us via our official whatsaspp +86 15928564693. or drop message via contact page . We will reply you within 8 hours .
Step2 Free proofing
We may need you to provide drawings /requirements of the machine. In some cases, physical samples may needed in case to provide more accurate solutions and quotation.
Step3 Verify the quality by sending back physical samples or via videos/pictures
After we finished the free proofing, we will send you back the samples or share you videos to varify the quality/perfomance of machine.
Step4 Pay the deposit according to the contract
If you are satisified with the free proofing, then both sides sign a contract to start the coopeation.
we accept T/T, paypal . Normally 50% advance payment is required. please kindly check with our sales agent.
Step5 Arranges production
Once we receive the down payment, we will start the production.
Step6 Deliver on time according to the contract
After the production finished ,we will debug the machine and once again verify the machine under your witness.once everything settled , we will ship the machine to you.
Step 7 After-sale service
We provide 1 year warranty for every machine we sold. Beyond the warranty, we will support life-long paid service and free tech support.

After-sale service

Simbel provide at least 1 year warranty service . Simbel has mature after-sales service system to provide life-long after-sale service and tech support and would like to build long-term cooperation with customers all over the world .

Packing&Shipping Details

Simbel support vaious shipping method including air, sea, train,road, base on the timeline and equipment size.
