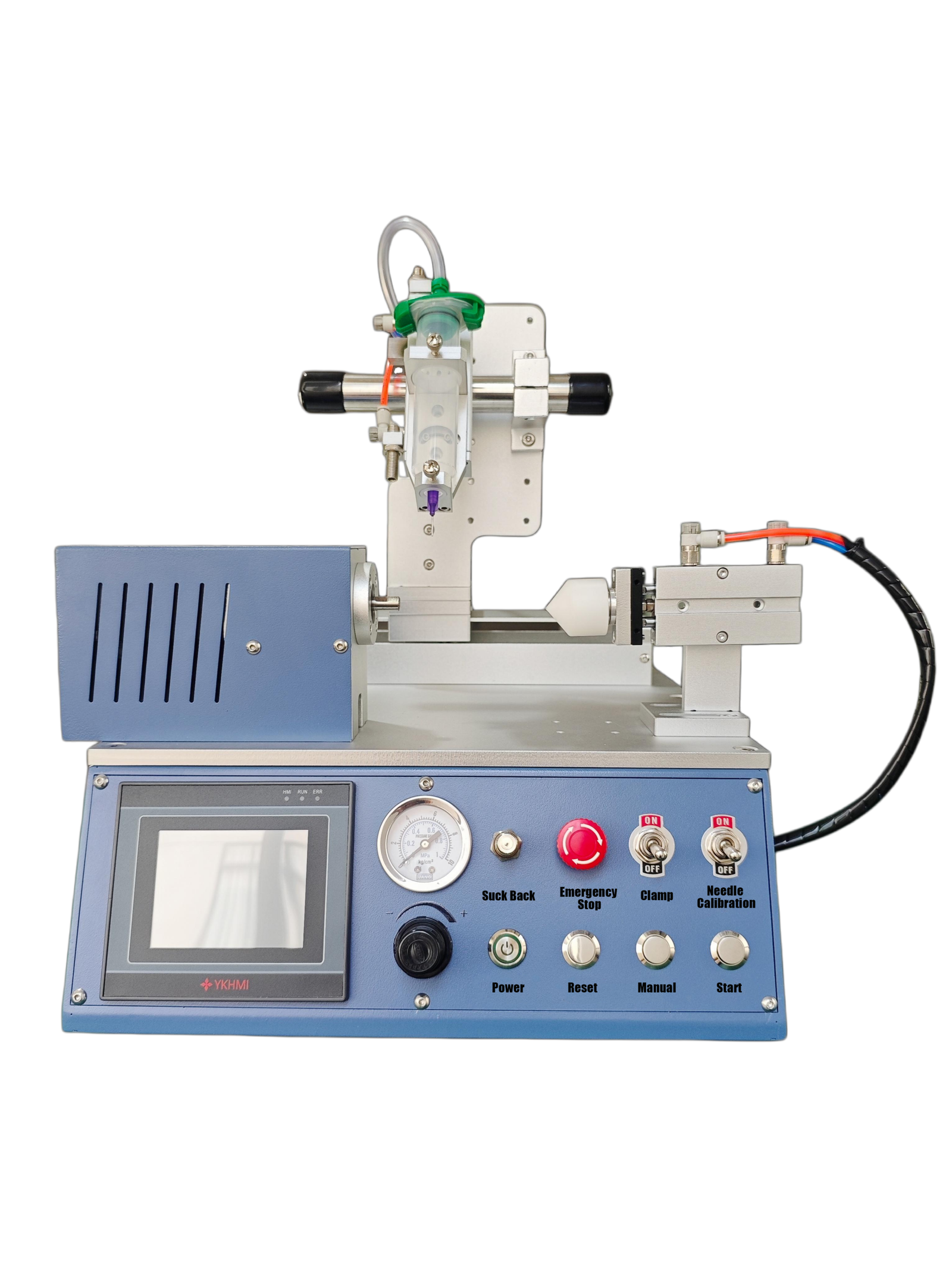

Automatic Thread Dispensing Machine Single Station SPL-LW100
Description
Product Introduction:

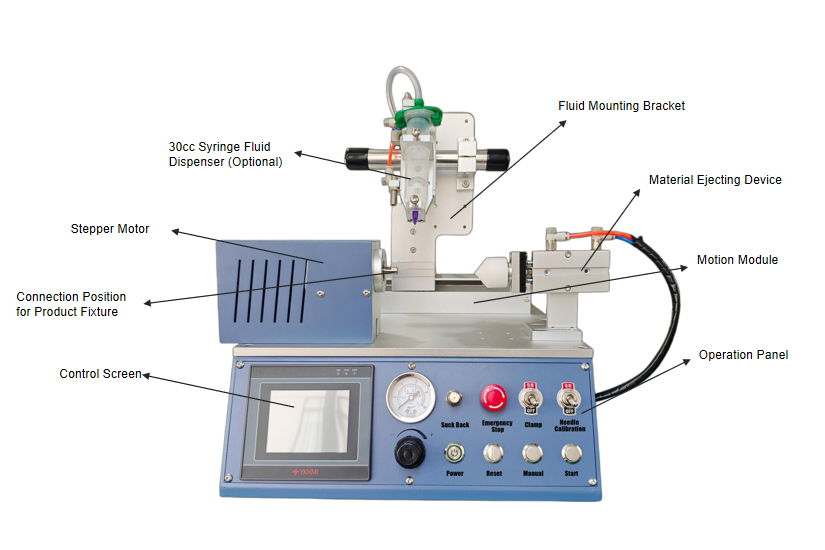

This SPL-LW100 rotary thread dispensing machine is specially designed for automatic glue coating on round threaded workpieces such as bolts, screws and fittings. It enables uniform application of anaerobic threadlockers, pre-applied adhesives, liquid PTFE sealants and other fluids. Widely adopted in fastener, hardware, automotive component and hydraulic fitting industries, it replaces manual gluing and ensures consistent glue layer thickness.
MAIN PARAMETERS
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Internal Voltage | DC24V | Motor Speed | 10–300 RPM |
| Power | 220W | Drive Method | Precision Stepper Motor |
| Input Voltage | AC220V | Traverse Method | Precision Linear Module |
| Input Air Pressure | 3–6 bar | Dispensing Length | 0.2–12 cm |
| Output Air Pressure | 0.1–5 bar | Cycle Time | 2–7 sec/pc (depends on product) |
| Minimum Glue Output | 0.01 g | Control System | Proprietary Self-developed System |
| Dimensions | 350 × 400 × 450 mm | Weight | Approx. 25 kg |
Contact us now
We welcome customers across the globe to reach out. All your inquiries will be answered within 8 hours.
