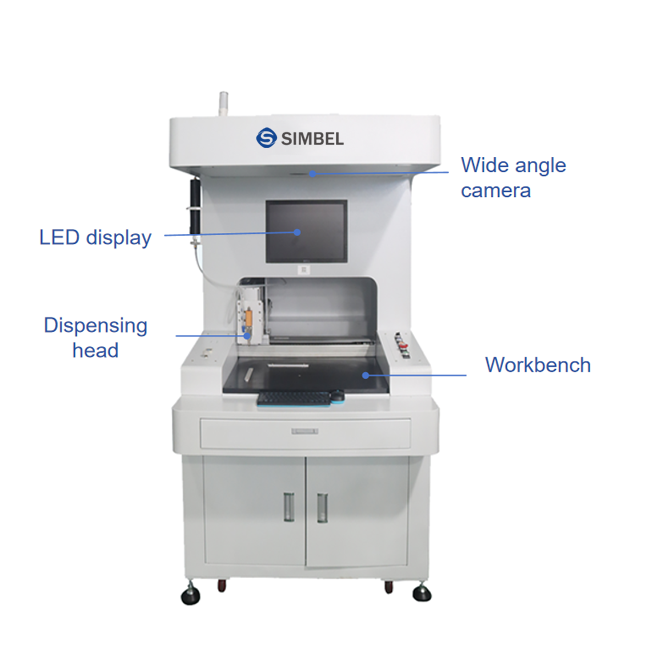

Floor-type panoramic vision-guided dispensing machine SPL-D431
Floor-type panoramic visual dispensing machine SPL-D431
Description
Parameter configuration
| Product Model | SPL-D431 |
| work schedule | 400/300/100mm (customizable) |
| CCD resolution | 0.05mm |
| Movement speed | 800-1000mm/s (customizable) |
| Repeatability accuracy | ±0.01mm |
| positioning method | Panoramic visual positioning, products can be placed freely |
| Glue dispensing method | Point, line, surface, circle, arc, glue coating, glue injection or any irregular curve |
| Visual system | Independently developed visual capture and positioning system |
| Input power | Full voltage AC220V |
| Transmission method | Screw rod, imported motor, motor |
| Edit interface | Windows |
| Overall dimensions | 1310*1433*1860mm |
Main Features:
- This machine is a high-precision and precise dispensing equipment that uses a visual system for precise positioning and control of dispensing
- Stable adhesive output without dripping or leaking.
- Intelligent and fast recognition of location, placing products freely without the need for fixtures
- Automatic cyclic action to achieve uninterrupted dispensing work
- Optional pressure tank rubber storage operation, saving time for changing rubber
- Long service life and low maintenance cost
