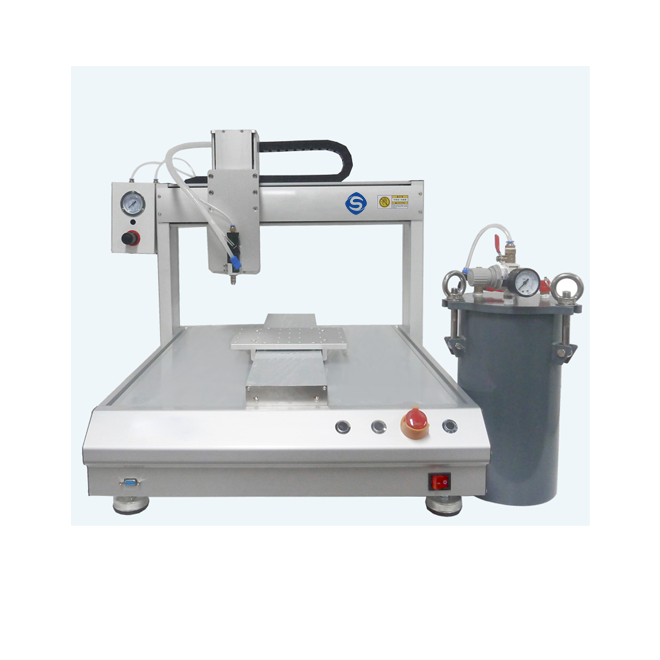

Desktop UV glue automatic dispensing machine SPL-D441
Описание
Desktop UV glue automatic dispensing machine SPL-D441
Parameter configuration
| Product Model | SPL-D441 |
| Work schedule | 400/400/100mm (customizable) |
| Programming method | Handheld teaching programming |
| Movement speed | 300-800mm/S (customizable) |
| Repeatability accuracy | ±0.02mm |
| Ambient humidity | 20~90% |
| Machine load | X-axis: 10kg Y-axis: 10kg Z-axis: 3-5kg |
| Program storage | Can store 100 sets of processing data |
| Transmission method | Synchronous belt/screw+precision linear guide |
| Display mode | LED teaching box |
| Input power | Full voltage AC220V |
Main Features:
- High precision dispensing valve, precise control of dispensing volume
- Teach programming by demonstration, easy to learn
- Equipped with a 5-liter pressure drum (customizable), with a large capacity to reduce replacement time
- Supports dispensing on any trajectory such as points, lines, surfaces, arcs, etc
- Uniform and smooth dispensing, precise dispensing, no dripping or leakage of glue
