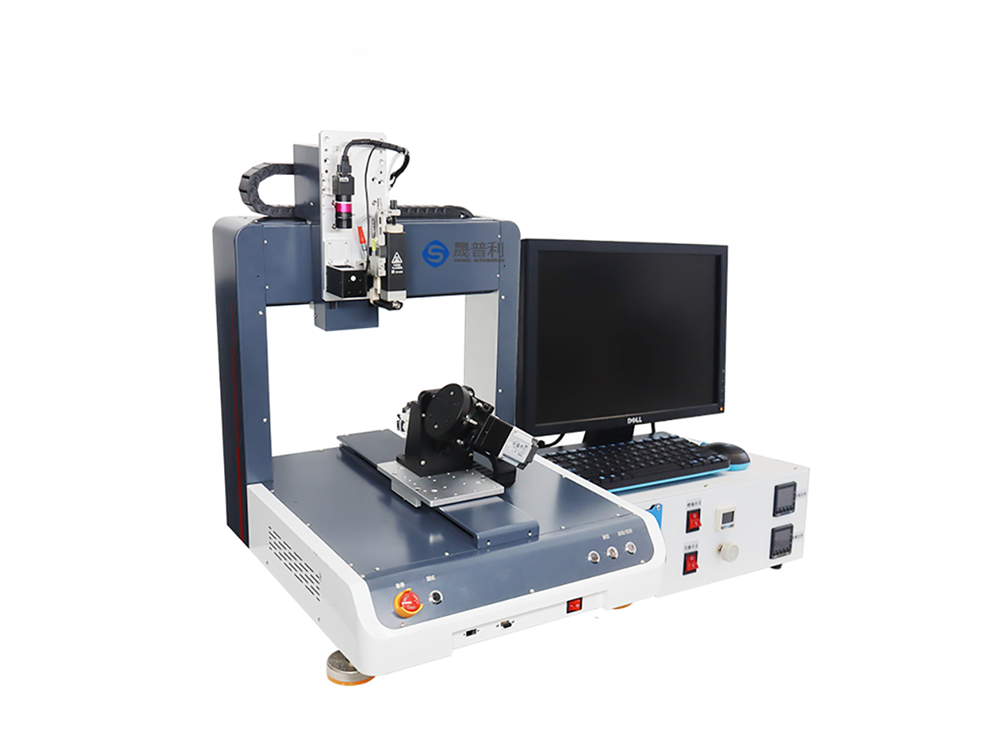

Five axis rotating automatic dispensing machine SPL-D331-3
Five axis rotating automatic dispensing machine SPL-D331-3
Описание
Parameter configuration
| Product Model | SPL-D33133 |
| work schedule | X: 300/Y: 300/Z: 100/V: 360/W: 360mm (customizable) |
| Programming method | vision software |
| Movement speed | 300~800mm/s (customizable) |
| Repeatability accuracy | ±0.02mm |
| Machine load | R-axis: 3kg (customizable) |
| Program storage | Can store 999 sets of data |
| Transmission method | Synchronous belt/screw+guide rail |
| Display mode | industrial computer |
| Input power | Full voltage AC220V |
| Dispensing valve | Hot melt adhesive spray valve (can be matched with dispensing valve according to actual needs) |
| Ambient temperature | Room temperature~40 ℃ |
| Ambient humidity | 20~90% |
| Overall dimensions | 590*670*800mm |
| Equipment weight | About 60kg |
Main Features:
- The Y-axis can be flipped up, down, left, and right, and the top can be flipped 360 degrees
- Smooth dispensing, versatile angles, no glue accumulation at corners
- Visual recognition, fast programming, easy to learn and learn
- The dispensing speed and dispensing volume can be set separately
- Suitable for dispensing products from multiple angles
- Chinese and English screens, with multiple dispensing paths available for selection
- Quantitative dispensing, consistent dispensing, and even dispensing
- Non brushed and non frayed, saving glue and improving efficiency
- The Y-axis can be flipped up, down, left, and right, and the top can be flipped 360 degrees
- Smooth dispensing, versatile angles, no glue accumulation at corners
- Visual recognition, fast programming, easy to learn and learn
