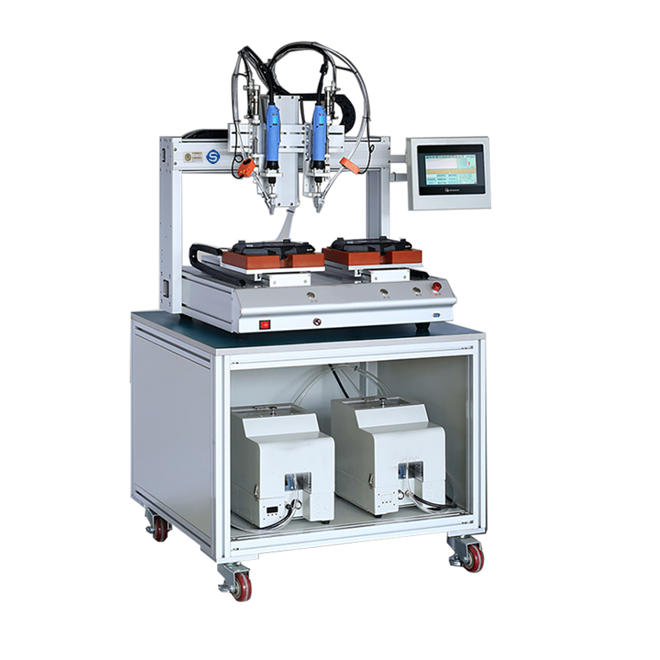

Floor-type blowing type automatic screw driving machine SPL309
Description
Main features
Simbel Automatic Screw Locking Machine SPL309
- Dual workstation (i.e. dual Y-axis) mode, where operators can alternately pick up and place products without waiting, greatly reducing the labor intensity of workers
- Human machine collaboration PLC sets coordinate points to store multiple sets of formulas, allowing operators to simply retrieve and place products with a production efficiency of 200-300 PCS/hour
- Sheet metal frame with high rigidity, high precision and stable stability;
- Supports locking screws such as Phillips, Torx, Hex, Slotted, and Triangle head screws;
- Compatible with barcode scanner / torque data export, height detection, and MES system integration (functions);
- Equipped with high-speed motion control card + Weintek touch screen for real-time production data monitoring;
- Supports M1.0-M6.0 screws, accommodating plain holes, deep holes, inclined holes, and various surface hole positions;

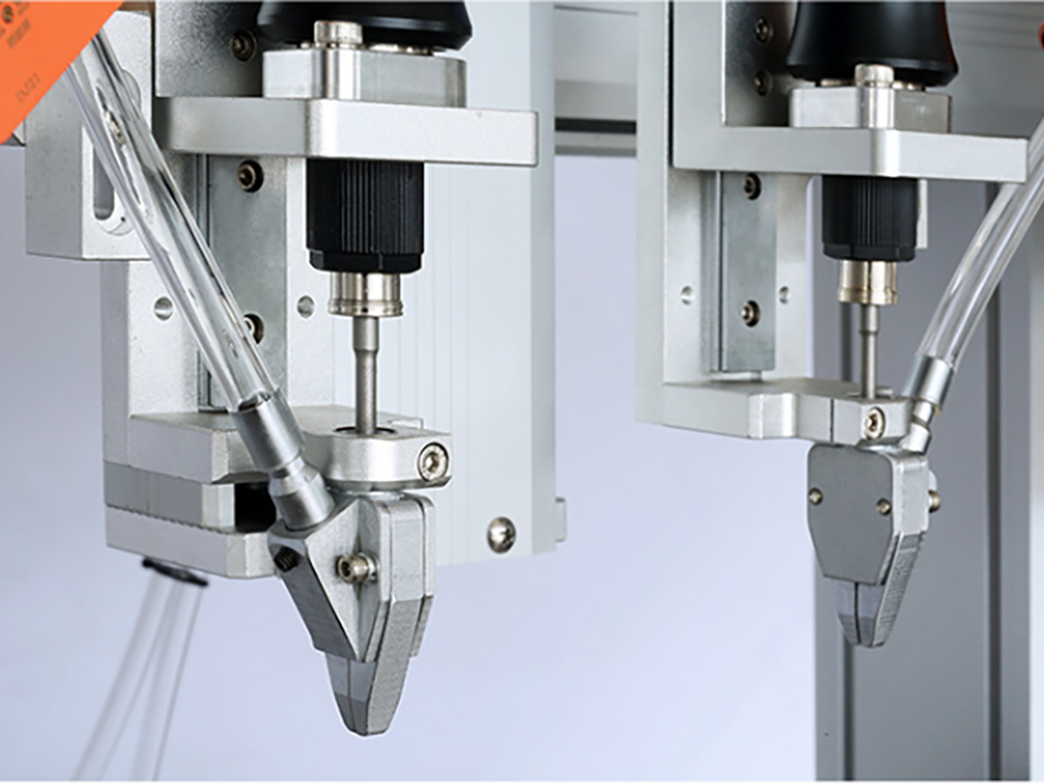

- Intelligent electric screwdriver featuring high speed, high precision, long lifespan, maintenance-free, and real-time monitoring of fastening torque and motor speed;
- Intelligent electric screwdriver with adjustable speed from 0 to 3000r/min and torque range of 1-12kg. The torque can be freely adjusted on the display and supports multiple torque output modes.
Parameter configuration
Double head asynchronous automatic screw locking machine-SPL309
| Model | SPL309 |
| Travel itinerary (X * Y * Z) | 400 * 400 * 100mm (customizable) |
| Lock payment range (X * Y * Z) | 320 * 220 * 100mm (customizable) |
| Y-axis load | 10kg |
| XYZ axis movement speed | 800-600-800mm/s |
| Feeding method | Air blowing type |
| Repetitive positioning accuracy | ±0.02mm |
| Program storage capacity | nine hundred and ninety-nine |
| Axle count | 4 |
| Locking efficiency | 1-1.6 seconds per piece |
| Lock attachment yield rate | zero point nine nine nine eight |
| Support screws | M1.0-10.0 |
| working power supply | AC220V 50HZ |
| Working pressure | 4-6KPA |
| power | 1000W |
| Total weight of the machine | 100kg |
| Overall dimensions | 760*750*1030（L*W*H) |
Applicable industry
Electronics & communication, automotive, toy, hardware, medical & beauty, home appliance, optoelectronics industries, including PCB parts, mobile phones, cameras, motors, transformers, LED products, etc.
- Electronic & Communication Industry: PCB accessories, mobile phones, cameras, hard drives, keyboards, printers, computers, speakers, etc.
- Automotive Industry: Automotive accessories (speakers, motors, transformers, various assembly parts)
- Toy Industry: Toy cars, toy guns, dolls,etc。
- Hardware Industry: Motors, various component assembly
- Medical & Beauty Equipment Industry: Medical devices, beauty instruments
- Home Appliance Industry: Various electrical appliance accessories
- Optoelectronics Industry: LED modules, LED displays, LED lamp beads, LED bulb lights
