CCD vision-guided precise screw driving machine-SPL308
Description
Main features

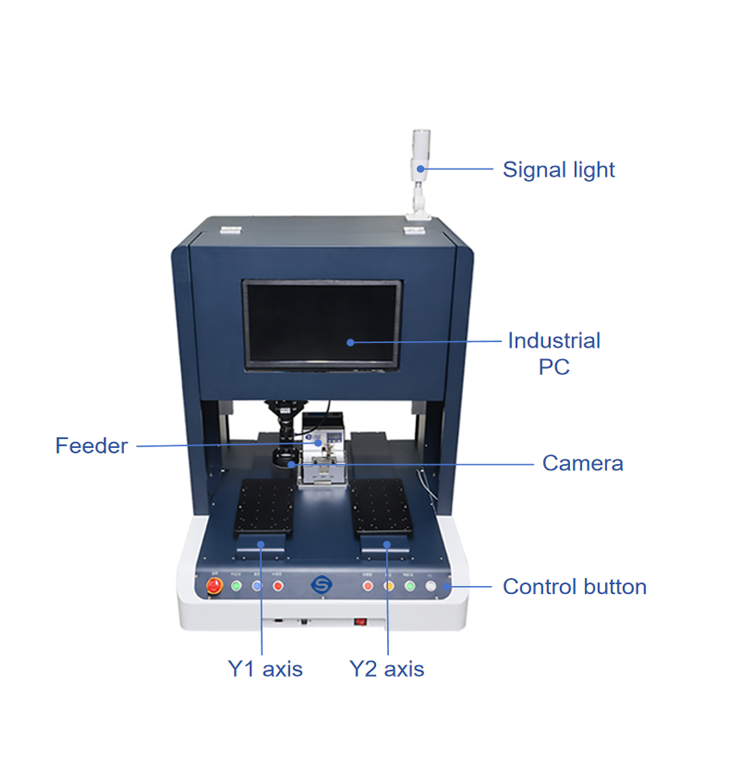

CCD visual automatic locking and automatic screw machine-SPL308
- Intelligent reading of product CAD graphics to generate lock point coordinates
CCD visual positioning, intelligent recognition and selection of defective screw vacancies
Strong flexibility, dual axis design, alternating operation - Sheet metal frame with high rigidity, high precision and stable stability;
- Supports locking screws such as Phillips, Torx, Hex, Slotted, and Triangle head screws;
- Compatible with barcode scanner / torque data export, height detection, and MES system integration (functions);
- Equipped with high-speed motion control card + Weintek touch screen for real-time production data monitoring;
- Supports M1.0-M6.0 screws, accommodating plain holes, deep holes, inclined holes, and various surface hole positions;
- Intelligent electric screwdriver featuring high speed, high precision, long lifespan, maintenance-free, and real-time monitoring of fastening torque and motor speed;
- Intelligent electric screwdriver with adjustable speed from 0 to 3000r/min and torque range of 1-12kg. The torque can be freely adjusted on the display and supports multiple torque output modes.
Parameter configuration
CCD visual automatic locking and automatic screw machine-SPL308
| Model | SPL-308 |
| Transmission method | Six axis precision closed-loop motor |
| Work schedule | 600 * 400 * 400 * 100 (mm) (customizable) |
| Control system | High performance motion control card+17 inch integrated computer upper computer |
| Repeatability accuracy | ±0.02mm |
| Working Voltage | Full voltage AC220V |
| Lock payment time | Lock payment 1.5-1.8/s per piece, remove nails 3s-4s per piece |
| Movement speed | 300-800 (mm)/s (customizable) |
| Electric batch | Servo electric batch |
| Load | X-axis: 10kg Y-axis: 10kg Z-axis: 10kg |
| Program record | 100 sets of data |
| Working environment | Temperature: Room temperature~40 ℃ Humidity: 20-90% |
| Programming method | CCD teaching box |
| Product Power | 800W |
| Delivery method | Suction type/optional magnetic suction/blowing type |
| Input power | AC220V |
Applicable industry
Electronics & communication, automotive, toy, hardware, medical & beauty, home appliance, optoelectronics industries, including PCB parts, mobile phones, cameras, motors, transformers, LED products, etc.
- Electronic & Communication Industry: PCB accessories, mobile phones, cameras, hard drives, keyboards, printers, computers, speakers, etc.
- Automotive Industry: Automotive accessories (speakers, motors, transformers, various assembly parts)
- Toy Industry: Toy cars, toy guns, dolls,etc。
- Hardware Industry: Motors, various component assembly
- Medical & Beauty Equipment Industry: Medical devices, beauty instruments
- Home Appliance Industry: Various electrical appliance accessories
- Optoelectronics Industry: LED modules, LED displays, LED lamp beads, LED bulb lights
Why choose simbel
Certificates
We focus on delivering quality products with reliable assurance. This machine has already got 3C ,CE,UL,FCC certificates.If custom design required ,a new certification may take 1-2 weeks to obtain .
How to Purchase Our Equipment
Step1 Clarify requirements
You can contact our customer agent Irene.li@simbelintel.com to clarify the requirements .or you can talk to us via our official whatsaspp +86 15928564693. or drop message via contact page . We will reply you within 8 hours .
Step2 Free proofing
We may need you to provide drawings /requirements of the machine. In some cases, physical samples may needed in case to provide more accurate solutions and quotation.
Step3 Verify the quality by sending back physical samples or via videos/pictures
After we finished the free proofing, we will send you back the samples or share you videos to varify the quality/perfomance of machine.
Step4 Pay the deposit according to the contract
If you are satisified with the free proofing, then both sides sign a contract to start the coopeation.
we accept T/T, paypal . Normally 50% advance payment is required. please kindly check with our sales agent.
Step5 Arranges production
Once we receive the down payment, we will start the production.
Step6 Deliver on time according to the contract
After the production finished ,we will debug the machine and once again verify the machine under your witness.once everything settled , we will ship the machine to you.
Step 7 After-sale service
We provide 1 year warranty for every machine we sold. Beyond the warranty, we will support life-long paid service and free tech support.
After-sale service
Simbel provide at least 1 year warranty service . Simbel has mature after-sales service system to provide life-long after-sale service and tech support and would like to build long-term cooperation with customers all over the world .
