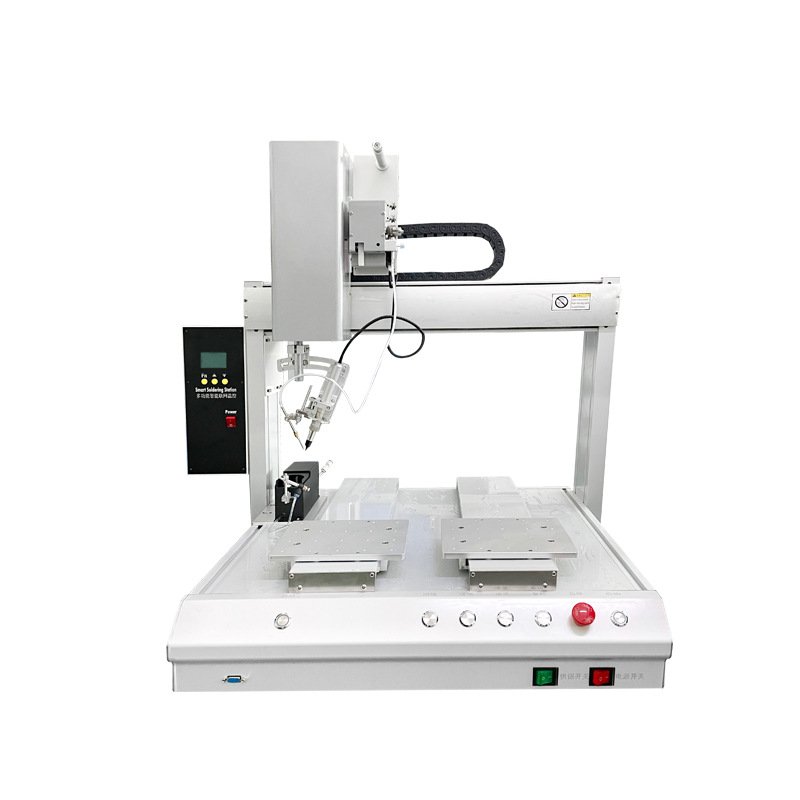

Desktop dual station automatic soldering machine SPL-S53311
Description
Automatic soldering machine
Desktop dual station single head automatic soldering machine SPL-53311
Main features
High Precision ±0.02mm | Double Productivity | Stable Quality|Support custom design
- It Save 70% Labor Cost: Replace 3-5 workers with one machine. Stable Quality: ±0.02mm precision, reduce defective rate by 90%.Fast Setup: Quick programming for small batch production
- It can help to enhance production capacity, improve consistency, and reduce costs . Stable soldering quality can reduce labor cost, soldering materials and rework.
- It possesses functions such as spot soldering, drag soldering, arc soldering, oblique soldering, and jiggle soldering;
- With the function of automatic cleaning of the soldering iron tip, the quality of soldering tin processing is stabilized to a certain extent, and the service life of the soldering iron tip is extended;
- The solder feed effect is very good, and the delivery is accurate, and there is no tin explosion phenomenon during soldering;
- The soldering control system utilizes the world's most advanced motion control card, which is more user-friendly than PLC programming.
- The equipment's programming work can be copied point-to-point and block-to-block, shortening the program writing time;
- Suitable for tin wire specifications ranging from 0.3 to 1.6mm
- The instruction box with graphical button design allows users to easily set paths with just a flick of the finger, and easily complete matrix replication, offset modification, and correction point setting for various paths
Why choose simbel
BASIC PAREMATERS
Automatic dual station single head automatic soldering machine -SPL-S53311
| Machine Name | Dual station automatic soldering machine |
| Model | SPL-S5331 |
| X(mm) | 500 |
| Y1(mm) | 300 |
| Y2(mm) | 300 |
| Z(mm) | 100 |
| Max moving Speed | X/Y:800mm/s Z:200mm/s |
| Repeatability accuracy | ±0.02mm |
| Solder wire | 0.3-1.6mm |
| Tin feeding method | Auto feeding |
| Heating | 150W-650W (optional) |
| Storage | 100 groups / each group containing 1000 points |
| Temperature | 0-500°C |
| Input Power | 220V/50HZ |
| Driving mode | Stepper motor or closed-loop motor |
Main features
Simbel Automatic Soldering Machine

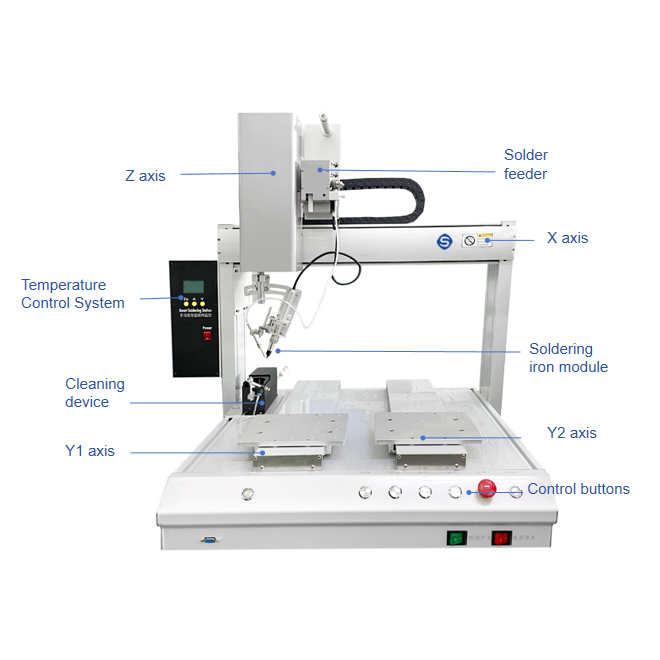

Product details
Precise and higher quality components ensure the long-term operation.
Applicable industry
Maturely applied to PCB / LED / Automotive / Electronics /Electrical industries.
- Communication industry: PCB, cables,, HDMI, RJ45, FPC, tuner, and other products are suitable for soldering this equipment;
- Optoelectronic industry: LED displays, LED strips, LED rectifiers, LED spherical lights, LED beads, and other products are suitable for soldering with this equipment;
- Home appliance industry: products such as air conditioning remote controls, air conditioningcontrol boards, computer speakers, and TV switch connectors are suitable for soldering on this equipment;
- Automotive industry: Products such as ignition switches, fuel sensors, navigation systems, and motorcycle turn signals are suitable for soldering with this equipment; wire harness soldering
- Toy industry: Products such as toy handle connectors and circuit boards are suitable for soldering on this equipment;
Certificates
We focus on delivering quality products with reliable assurance. This machine has already got 3C ,CE,UL,FCC certificates.If custom design required ,a new certification may take 1-2 weeks to obtain .
How to Purchase Our Equipment
Step1 Clarify requirements
You can contact our customer agent Irene.li@simbelintel.com to clarify the requirements .or you can talk to us via our official whatsaspp +86 15928564693. or drop message via contact page . We will reply you within 12 hours .
Step2 Free proofing
We may need you to provide drawings /requirements of the machine. In some cases, physical samples may needed in case to provide more accurate solutions and quotation.
Step3 Verify the quality by sending back physical samples or via videos/pictures
After we finished the free proofing, we will send you back the samples or share you videos to varify the quality/perfomance of machine.
Step4 Pay the deposit according to the contract
If you are satisified with the free proofing, then both sides sign a contract to start the coopeation.
we accept T/T, paypal . Normally 50% advance payment is required. please kindly check with our sales agent.
Step5 Arranges production
Once we receive the down payment, we will start the production.
Step6 Deliver on time according to the contract
After the production finished ,we will debug the machine and once again verify the machine under your witness.once everything settled , we will ship the machine to you.
Step 7 After-sale service
We provide 1 year warranty for every machine we sold. Beyond the warranty, we will support life-long paid service and free tech support.
Packing&Shipping Details
Simbel support vaious shipping method including air, sea, train,road, base on the timeline and equipment size.
After-sale service
Simbel provide at least 1 year warranty service . Simbel has mature after-sales service system to provide life-long after-sale service and tech support and would like to build long-term cooperation with customers all over the world .
