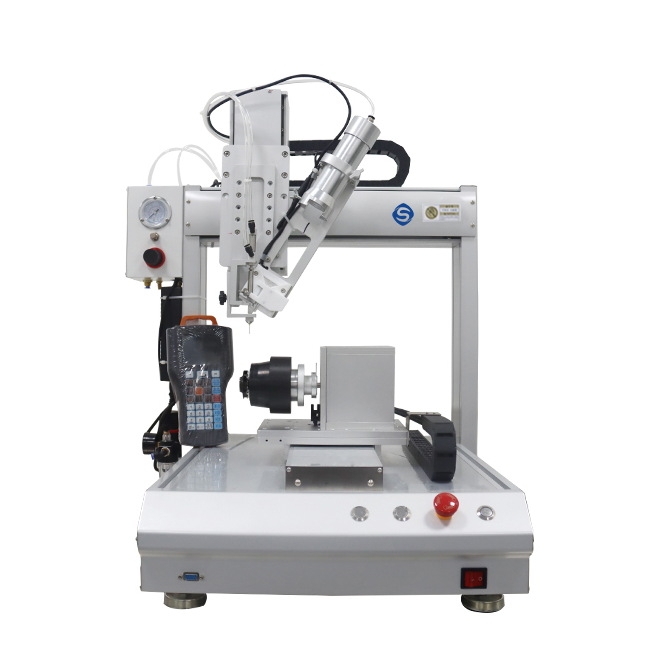

Desktop Rotary AB glue automatic dispensing machine SPL-D331-5
Description
Parameter configuration
| Model | SPL-D331-5 |
| Glue dispensing frequency | 10 seconds/time |
| Work schedule | 300/300/100 (customizable) |
| Control system | Single chip microcontroller+handheld box |
| Repeatability accuracy | ±0.02mm |
| Working Voltage | Full voltage AC220V |
| Glue head | Servo screw glue dispensing head |
| Movement speed | 300-800 (mm)/s (customizable) |
| Programming method | Teach programming or graphic import |
| Cooling method | Refrigeration cut-off |
| Glue output | 0.01ml |
| Recording mode | 100 sets |
| Servo rubber pushing device | Servo motor+screw type push glue |
| Handle operation | Chinese/English switchable |
| Motion trajectory | Irregular graphic movements such as points, lines, surfaces, and arcs |
Main Features:
- Fast cooling, effectively delaying the curing time of AB glue mixture
- No frost at minus 40 ° C
- Fast dispensing speed – adjustable speed, uniform dispensing,
- No leakage or dripping of glue, evenly mixed and dispensed glue
