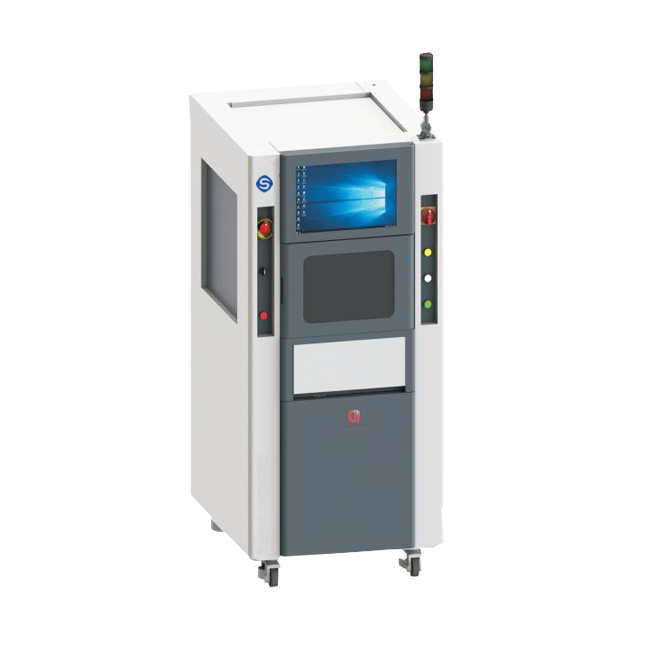

Precision CCD visual laser solder ball bonding SPL-LR21
Description
Parameter configuration
| Model | SPL-LR21 |
| Outline Dimensions (mm) | 850*950*1650 |
| Rated Voltage | AC220V |
| Maximum Current | 25A |
| Rated Power | 3.5KW |
| Compressed Air (MPa) | 0.7MPa |
| Nitrogen (MPa) | 0.5MPa 99.99%~99.999% |
| Laser Power | 60~150W(915nm)/200W(1070nm) |
| Laser Wavelength (nm) | 615/1070 |
| Working Range (mm) | 200*200 |
Main Features:
- Soldering method: High-efficiency laser welding, which is a non-contact welding process that eliminates external forces such as static electricity and friction;
- Welding space: Capable of completing welding in tight spaces and performing three-dimensional welding; (Minimum solder pad size: 0.2mm; solder pad spacing: 0.25mm)
- Motion system: Imported servo motors and high-precision components are used, ensuring superior accuracy and industry leadership, with precise positioning to 0.02mm;
- Structural system: It adopts an integrated marble gantry platform architecture, which is resistant to deformation and ensures better precision stability during prolonged equipment use; components such as the motion mechanism, measurement mechanism, welding unit, standard machine platform, load & unload, and fixed-position track are non-standard;
- Welding single-point speed: 3 balls/second, yield rate: over 99.6%;
- Connector: Equipped with a built-in cleaning system, with adjustable position and three-axis adjustment, ensuring precision and saving time and effort.
