Description

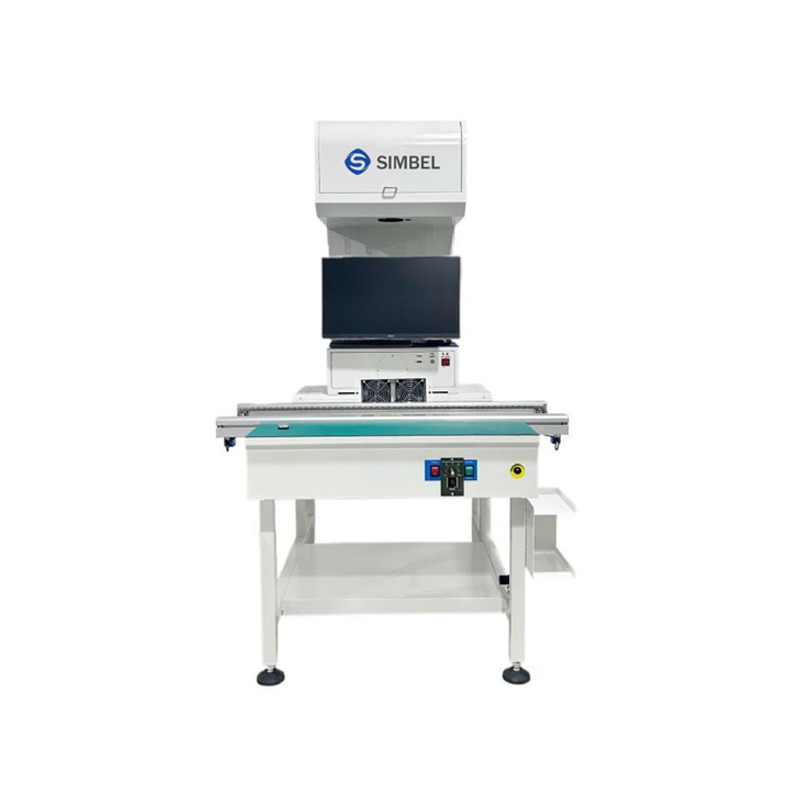

Product Introduction:
The on-line repair guidance station designed to improve the efficiency and accuracy of manual PCB rework. It provides visual guidance for operators, reducing human error and ensuring consistent quality control.
Features
- Works with your existing SMT production line at 750/900mm rail heights.
- Supports both left-to-right and right-to-left PCB flow, with adjustable rail heights.
- Includes built-in exhaust and a soldering iron holder for operator comfort and safety.
- Red/green indicators confirm pass/fail status, with foot-pedal control for hands-free operation.
- Exports repair logs in TXT format, with custom formats available.a
MAIN PARAMETERS
| Product name | New Projection Repair Station Online/Offline – SPL-Y1000t | ||
| Parameter | Specification | ||
| Model | SPL-Y1000t (Offline) | SPL-Y1001t (Online) | Notes |
| Equipment Type | Offline | Online | |
| Dimensions (L×W×H) | 600 × 800 × 1650–1800 mm | 1000 × 1000 × 1650–1800 mm | Rail height adaptable to 750/900 mm |
| Max PCB Size (L×W) | 400 × 350 mm | 390 × 350 mm | Custom larger sizes available upon request |
| Max Rail Load | 10 kg | 10 kg | |
| Host System | Windows 10 | Windows 10 | |
| Power Consumption | 560 W | 560 W | |
| PCB Flow Direction | Left to Right / Right to Left | Left to Right / Right to Left | |
| Rail Height (Floor to Rail) | 750 / 900 mm | 750 / 900 mm | Manually adjustable |
| Internal Rail Clearance | 70–100 mm | 70–100 mm | Custom larger distances available |
| Exhaust System | Included | Included | |
| Soldering Iron Holder | Included | Included | |
| Air Pressure | 0.4–0.6 MPa | 0.4–0.6 MPa | |
| Status Indicator Color | Red / Green | Red / Green | Adjustable |
| Confirmation Method | Foot pedal / Micro-switch trigger | Foot pedal / Micro-switch trigger | |
| Data Format | TXT / Customizable | TXT / Customizable | |
| Barcode Reading Support | Yes | Yes | Requires an external barcode gun |
