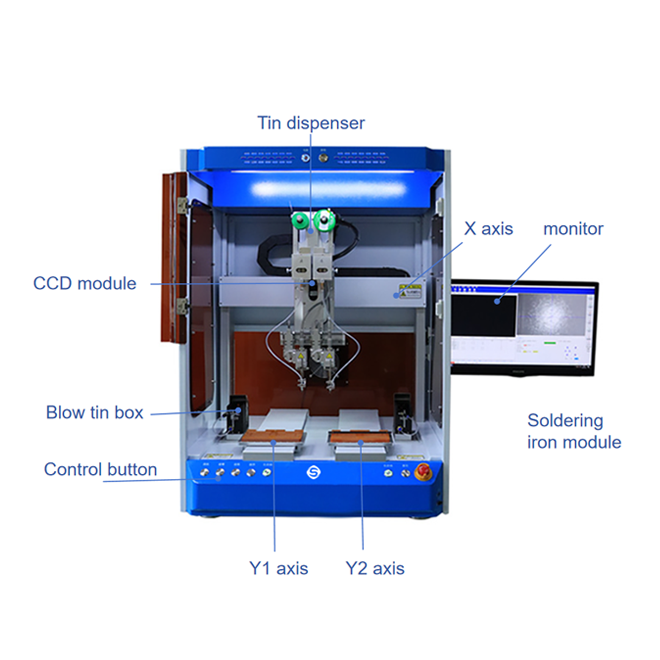

Floor-type vision-guided automatic soldering machine SPL-H531-6
Description
Parameter configuration
| Model | SPL-H531-6 |
| Action range | X-axis Y-axis: 500 × 2-450 (mm) Z-axis: 100mm |
| Operating speed (PTP) | X-axis Y-axis. Z-axis: 0~500mm/sec |
| load capacity | Tray: 10Kg Z-axis: 5KG |
| Repetitive positioning accuracy | X. Y. Z-axis: ± 0.02mm |
| Tin delivery range | 0.3-1.0 |
| Temperature controlled power | 400W |
| Temperature control error | ±2℃ |
| Temperature control range | 50℃-500℃ |
| Transmission method | Precision motor |
| Control method | Micro Industrial Control Computer (IPC) |
| CCD visual positioning system | have |
| External control interface | USB/R8232 |
| power supply | AC220V 50HZ |
| single-unit power | ≤2kW |
| Operating Temperature | 0~40℃ |
| Relative humidity | 20~90% non condensing |
| working method | Automatic (dual station) |
| pressure requirement | ≤0.6MPa |
Main Features:
- 360 degree rotation welding, welding different points at different angles
- High frequency power heating element, good horizontal effect, and more stable welding quality
- The intelligent temperature control system can quickly heat up and cool down
- Large storage memory capacity, and software with area array, translation and rotation operations, and other functions
- Equipped with visual positioning system function
- A high displacement smoking system minimizes the pollution of soldering flux to the air and soldering modules
- High strength soldering iron tip with multi-layer coating resistant to high temperature oxidation, with hundreds of different soldering iron tip forms, can be designed according to customer needs
