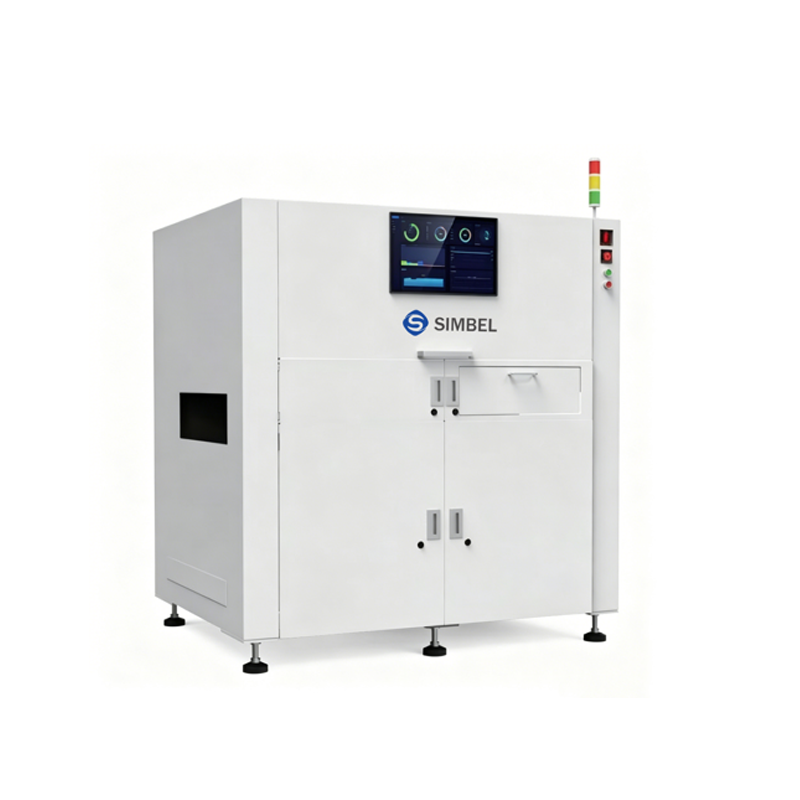

New Energy FPC Intelligent AOI inspection SPL-FPC100-510
Descripción
Product Introduction:
New-generation intelligent AOI is specially developed for flexible PCBs (FPC) of new energy vehicle battery management systems. Equipped with self-developed AI algorithms, it detects up to 96 types of FPC defects including random scratches, dents and nickel sheet damages. This parameter-free AOI uses high-precision industrial cameras and linear motors to capture real-time images. Supported by deep learning algorithms, it enables one-click search and AI programming to identify dents, scratches, oxidation, bubbles and other defects on FPC and nickel sheets.
Features
- AI intelligent programming with simplified operation, easy to master in just 10 minutes
- Powerful detection capability to effectively intercept defects in FPC production
- Full data traceability with robust SPC statistical analysis and visualization
- Single-section long-track design to meet large-size board requirements
- Linear motor for high speed, high precision, continuous stability, and low wear
- Marble platform, columns, and cross beams for durability and stability
- Supports upstream/downstream signal integration with configurable PCB entry/exit directions for flexible line integration and adaptation to diverse production scenarios
MAIN PARAMETERS
| Product name | New Energy FPC Intelligent AOI |
| Parameter | Specification |
| Model | FPC100-510 |
| Inspection Method | Convolutional Neural Network, advanced deep learning model, computer vision, graphics and image processing |
| Program Creation | ~3-5 minutes per new product |
| Inspection Speed | 0.25 sec/FOV (Field of View) |
| FPC Fixture Size | 50mm×50mm – 1200mm×500mm; custom lengths up to 1500–2500mm×500mm supported |
| FPC Thickness | 0.1mm – 1mm |
| PCBA Component Height | Top side: 35mm; Bottom side: 80mm |
| FOV (Field of View) | 61×45mm (49×36mm optional) |
| Resolution | Standard: 15µm (10µm / 12µm optional) |
